Belt construction

Solid Woven Belting

An integrated woven carcass for robust flexing, fastener retention and selected fire-resistant duties.

Product overview

Built around the duty.

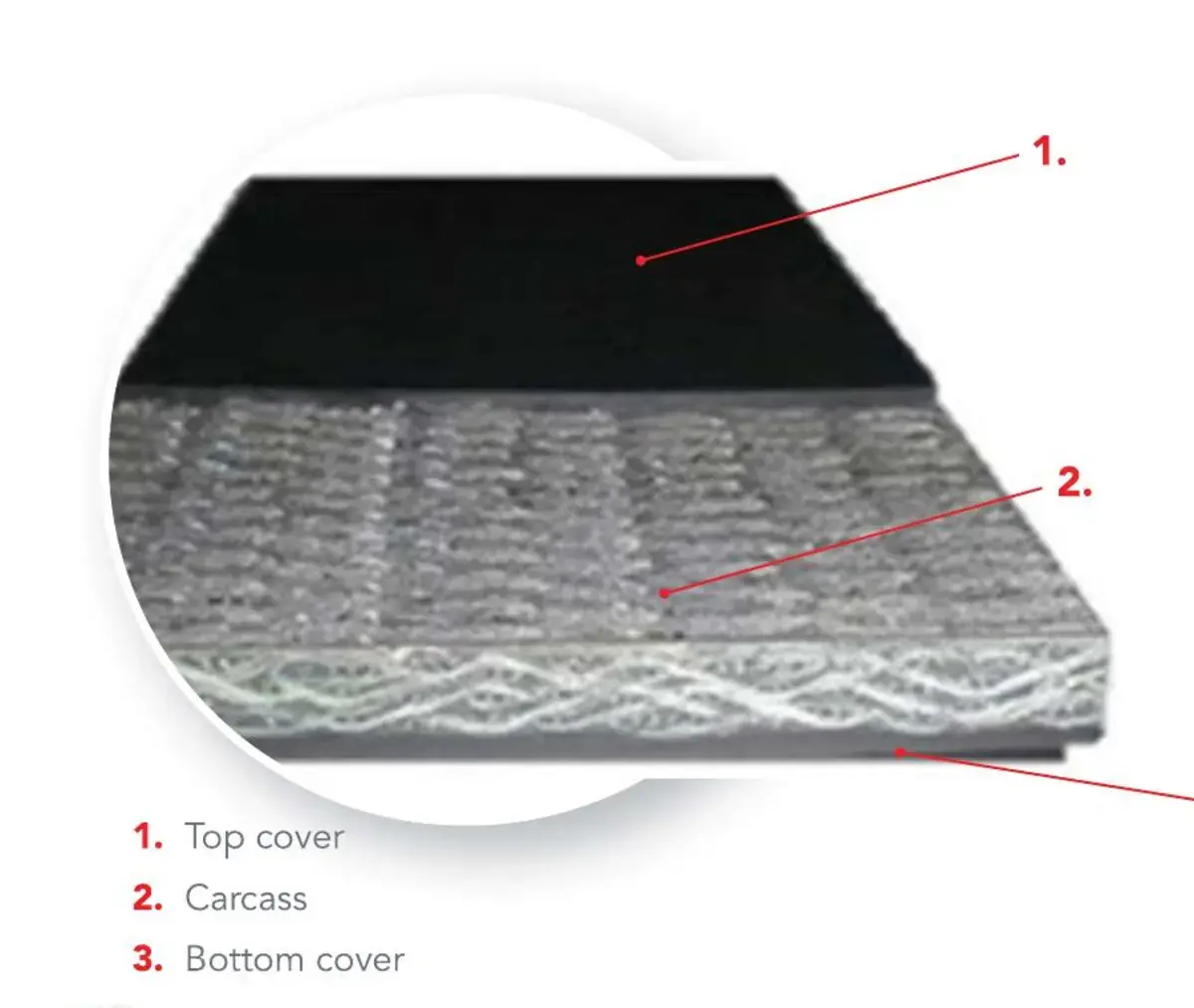

Double Arrow solid woven conveyor belt cutaway — Integrated solid-woven carcass with application-selected PVC, PVG or PVNi cover systems.

Solid woven belting uses an integrated textile carcass rather than separate plies. The woven body can be impregnated and covered with PVC, PVG or PVNi compounds to suit the mechanical duty and required safety pathway.

Published strength rangeUp to 2,500 N/mm

Published belt widthUp to 1,800 mm

Cover systemsPVC, PVG or PVNi

Safety pathwayAS 4606 where required

Construction & selection

What defines this product.

Single integrated woven carcass resists ply separation
Strong fastener and bolt retention
High tear, rip and puncture resistance
Compact construction with useful longitudinal flexibility
PVC, PVG or PVNi cover systems available by specification

Typical applications

Where it fits.

01Selected underground duties
02Short-to-medium conveyor centres
03Applications using mechanical fasteners
04Industrial duties needing a compact carcass

Available configurations

Configure the construction.

01
PVC-impregnated carcass with PVC covers
02
PVG rubber-rich cover system
03
PVNi cover system for selected industrial duties
04
Top and bottom cover thickness combinations matched to the application

Selection inputs

What we need to confirm.

01
Required fire and antistatic certification pathway
02
Belt strength, width and operating tension
03
Wet or dry operating conditions
04
Pulley diameters and fastener system
05
Oil, moisture or chemical exposure

Specification note

For underground coal applications, the complete belt construction—not only the cover—must follow the applicable AS 4606 type-testing and certification pathway.
